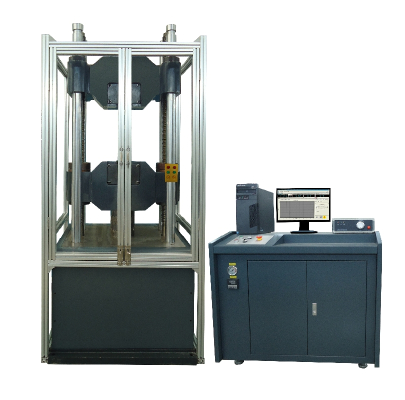

Computer Display Hydraulic Universal Testing Machine

Computer Display Hydraulic Universal Testing Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2001-07-12
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  40
  • Place of Origin:  China
  • Brand Name:  Test
  • Model Number:  WAW-600
  • Weight: 2200.000 kg

WAW Series machine, compared with a ball screw type electric mechanical UTM, is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. So it is very suitable for tension, compression, bending and shearing strength test for various metal or nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, computer can timely collect the testing parameters like loading force, stroke etc. Equipped with the computer &Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. The servo system will provide on line close loop control and constant parameters control. It is widely used in different inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control. These machines can meet standards ASTM, DIN, ISO, GB and so on.

  • Size:  40
  • Place of Origin:  China
  • Brand Name:  Test
  • Model Number:  WAW-600
  • Weight: 2200.000 kg

Model

WAW-600D

WAW-1000D

Max Load Capacity (kN)

600

1000

Host Machine Structure

Four-column Two-lead screw

Four-column Two-lead screw

Load amplification

x1, x2, x5, x10 four scales (Auto Range) or no scale

Range of Testing Force

2%-100% of max load

Load Accuracy

±1%

Load Resolution

1/100000

Accuracy of Deformation

Error less than ±1%

Displacement Accuracy

Error less than ±1%

Max Tensile Space (mm)

580

600

Max Compression Space(mm)

550

580

Piston Stroke (mm)

150

150

Clamping Diameter of Round Specimen (mm)

Φ13-Φ40

Φ14-Φ45

Clamping Thickness of Flat Specimen (mm)

0-15

0-40

Piston speed: (mm/min)

0.5-50

Dimensions

(L*W*H)

Dimension of Host Machine (mm)

950×630×2265

1050×700×2300

Dimension of Control Cabinet (mm)

1100×600×970

1100×600×970

Power Supply

Three-phase 380V,50HZ

(Special requirements can also be met)

Net Weight (KG)

2200

2500
